Qingdao Zangma Mountain Moon Air Wedding Hall
-
Location
Qingdao
-
Client
sunac china
-
Design
BUZZ
Qingdao Zangma Mountain Moon Empty Wedding Hall opened in September 2021, which is another landing project of star architect BUZZ Zhuangziyu studio. FORCITIS Foster participated in the design and construction of the facade of the project, helping to shape the white auditorium in the mountains.

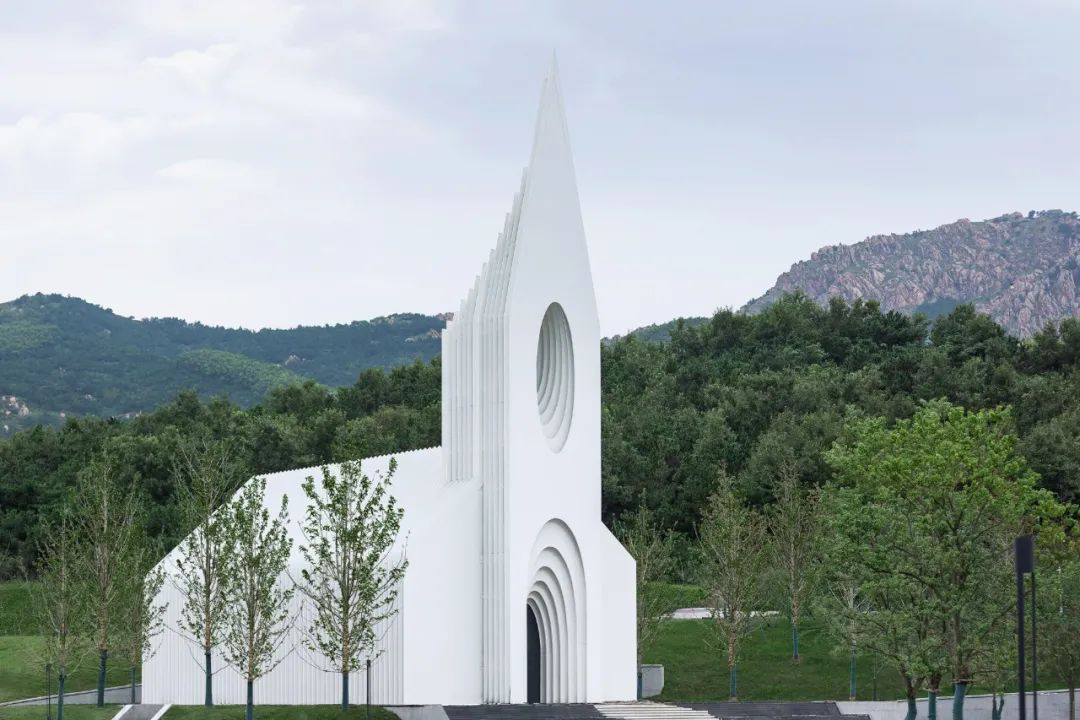

The moon-sky wedding hall is pure and ethereal in appearance. Whether it is spatial structure or material, the moon-sky wedding hall has created an extremely distinctive architectural style and derived richer scene meaning, achieving a proper balance between social public buildings and commercial projects.

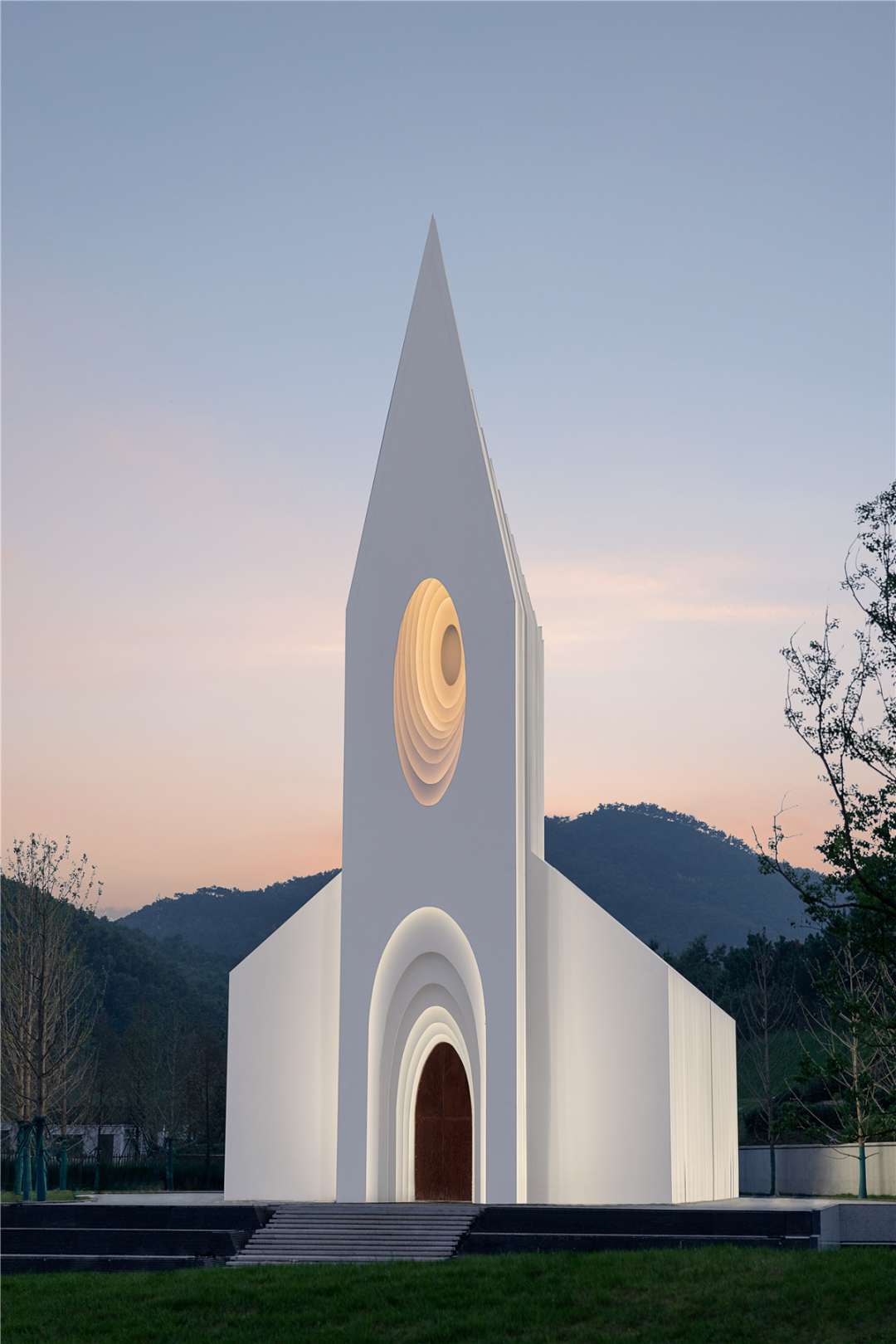

The whole building is designed in the form of ' cavity structure ' and ' slice superposition '. With pure white as the main tone, with simple lines to match the quiet and solemn atmosphere of the church. From afar is a modern church, look inside is a unique gentle streamline cavity.
02
The slender slice shape has great testability in Qingdao extreme weather. The Foster curtain wall team innovatively adopted built-in steel keel and outsourced 4mm composite aluminum plate, which not only meets the force requirements, but also realizes the appearance requirements of the building. The decorative lines are assembled in the factory and transported to the site for assembly, which not only ensures the accuracy but also meets the requirements of the site construction period.
The slices are formed in a unique way : a series of composite aluminum plate ( outdoor ) / GRG ( indoor ) slices are arranged longitudinally. Each slice is 5 cm thick, and the gap between each slice is 40 cm. All these slices combine to form the whole wall, roof and tower.

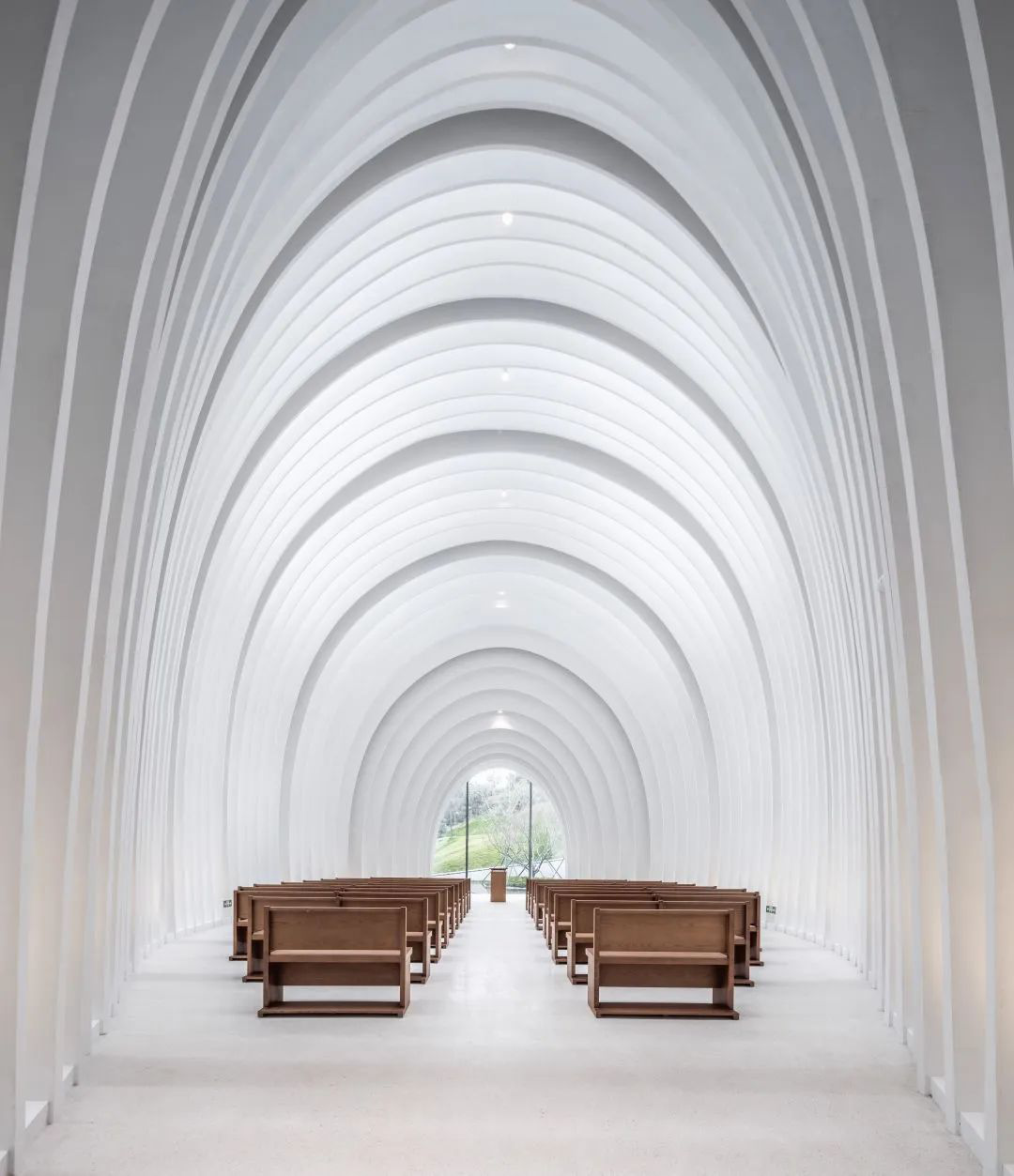

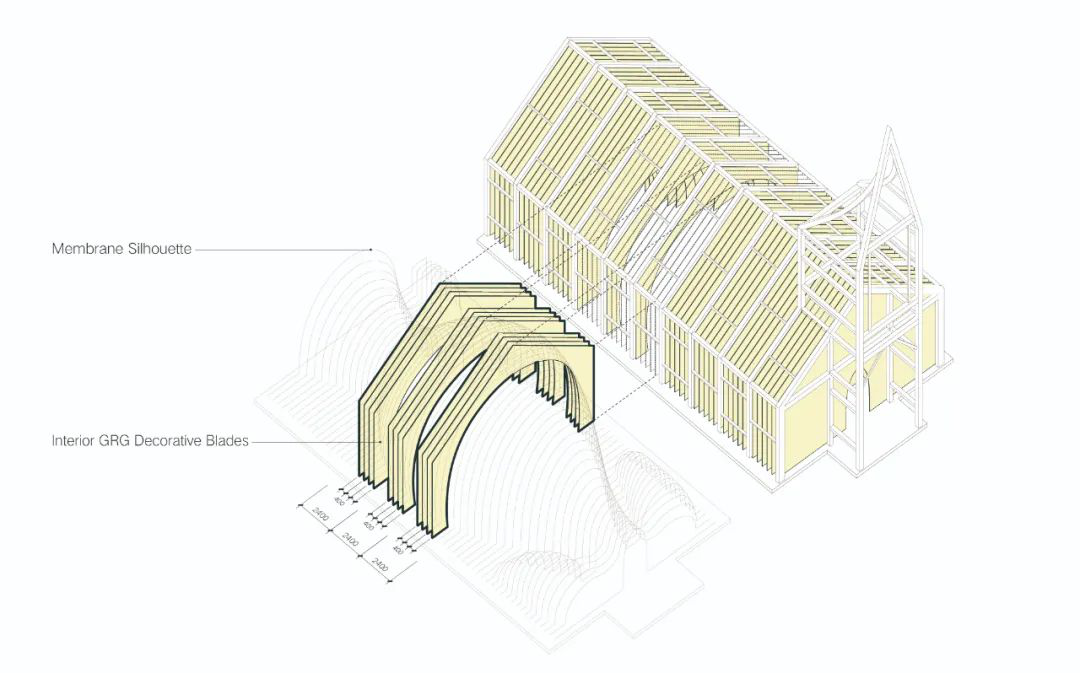

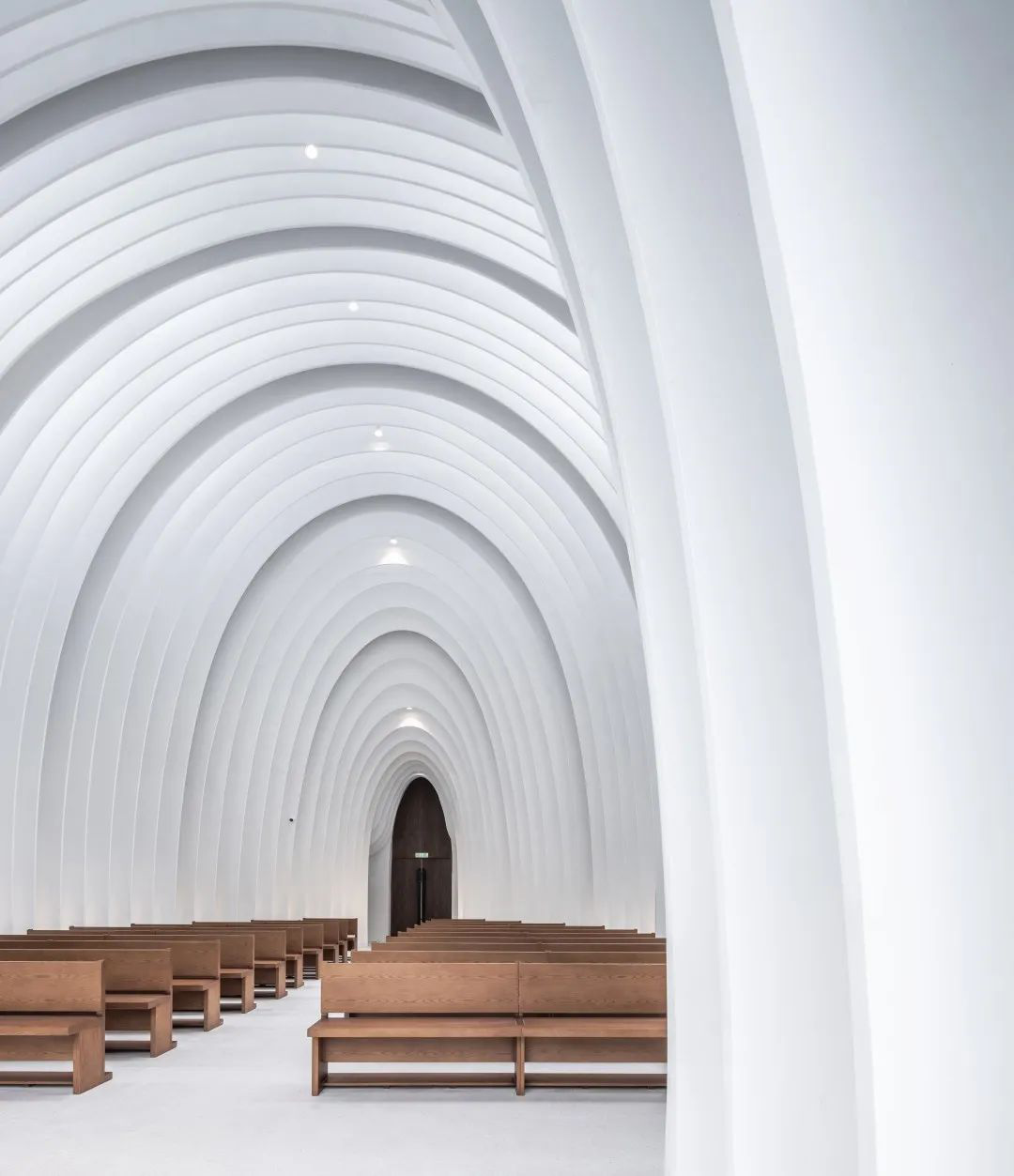

Indoor RGR sectioning ©BUZZ

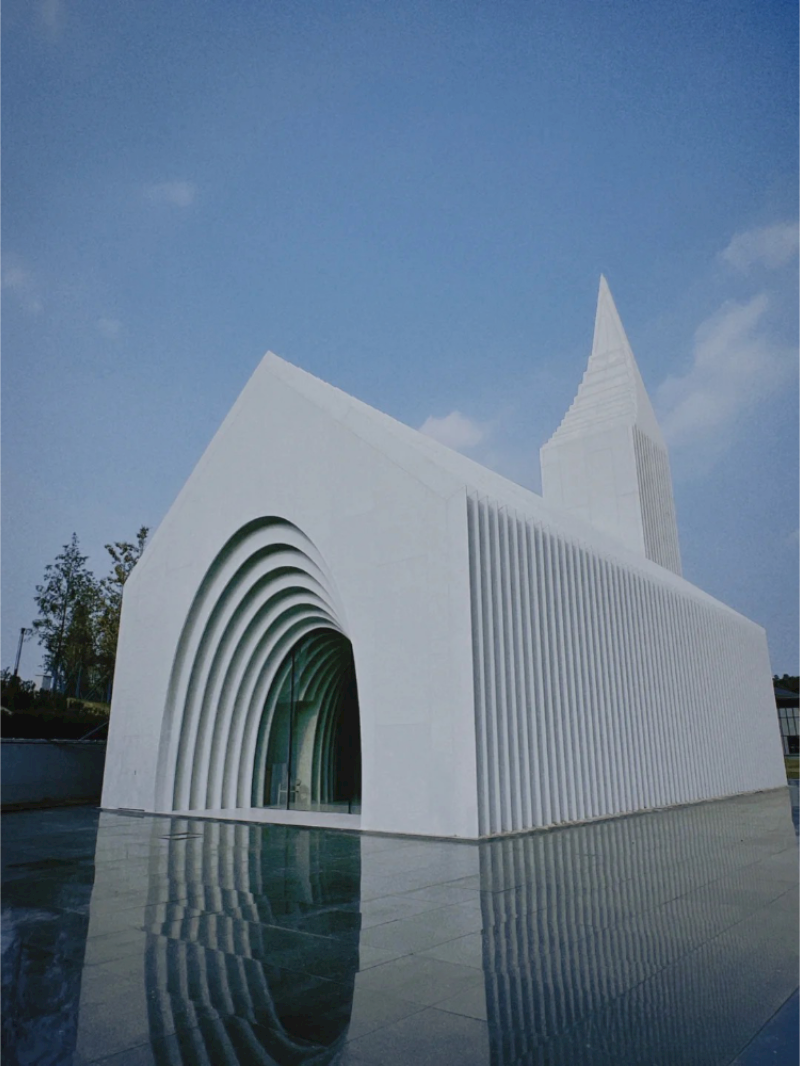

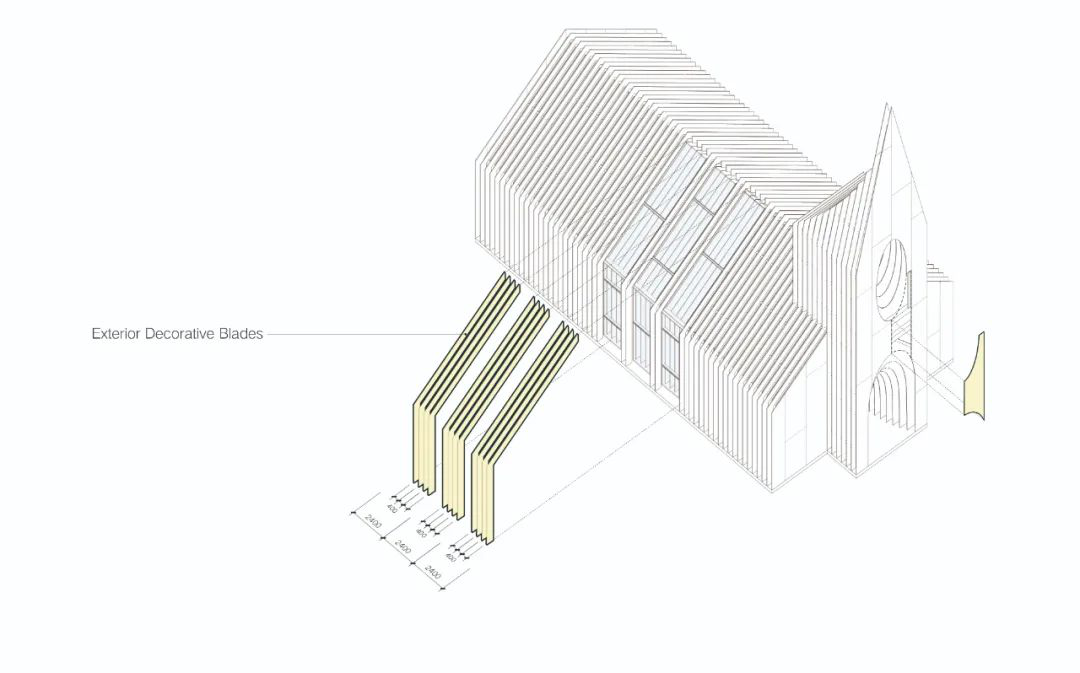

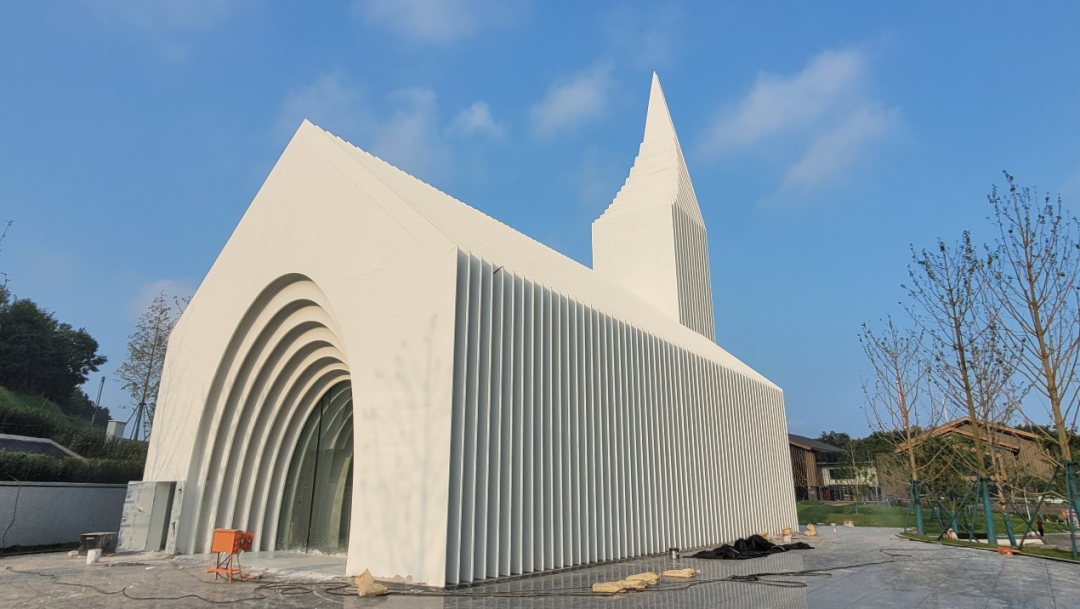

Outdoor composite aluminum plate slicing ©BUZZ

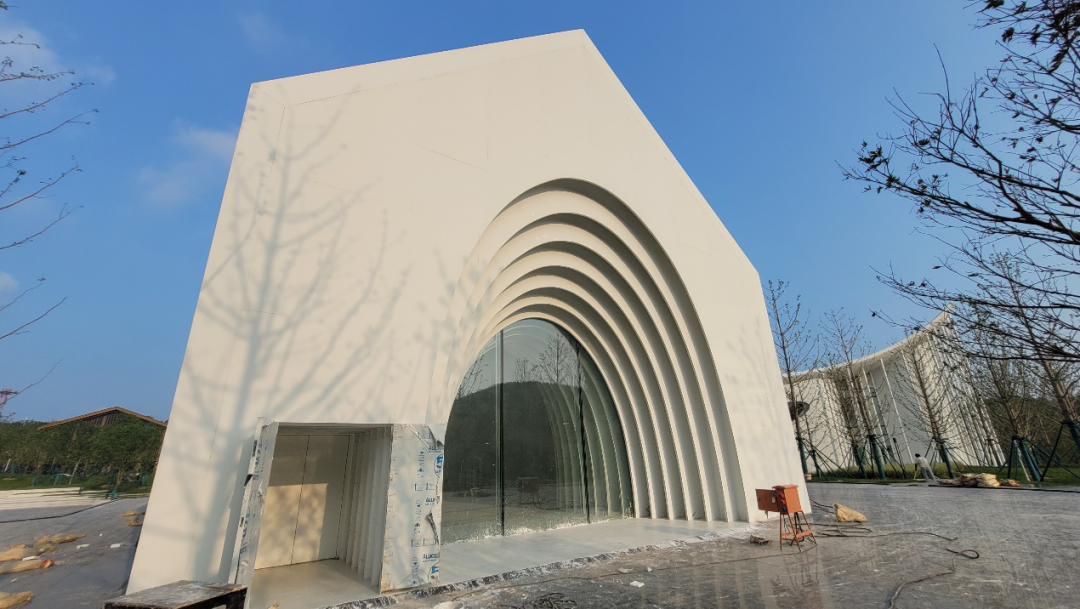

Glass curtain wall after slicing©BUZZ

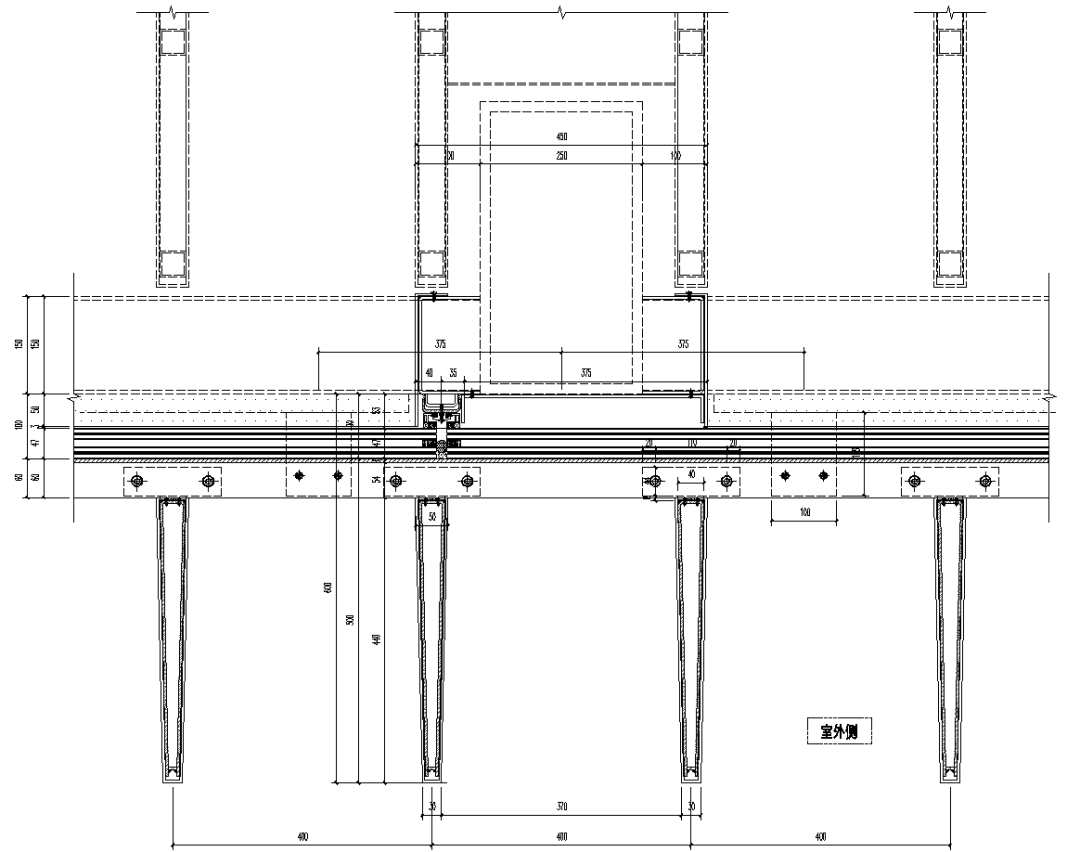

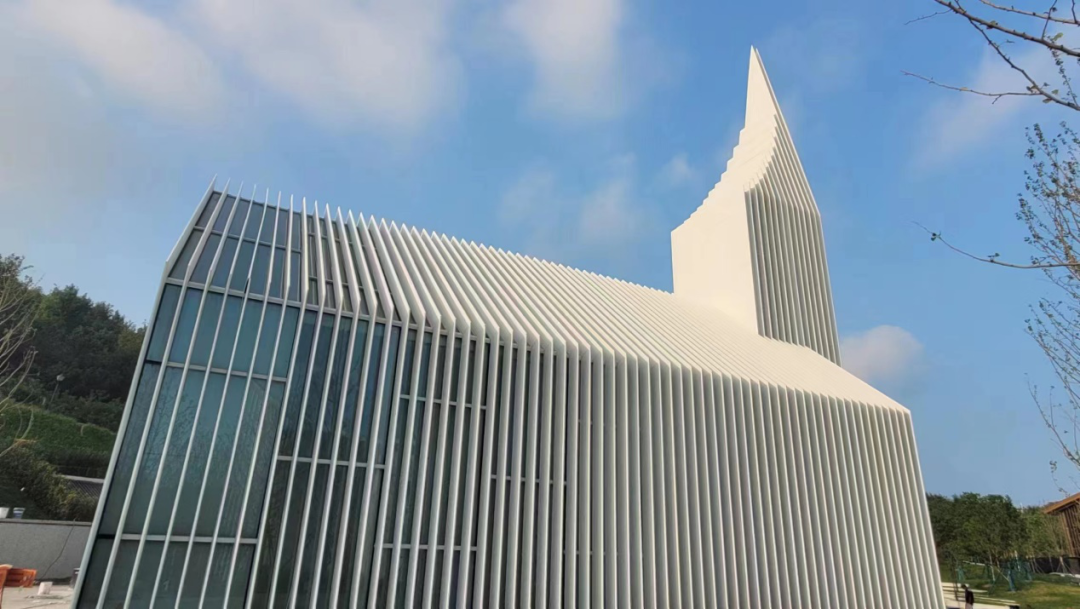

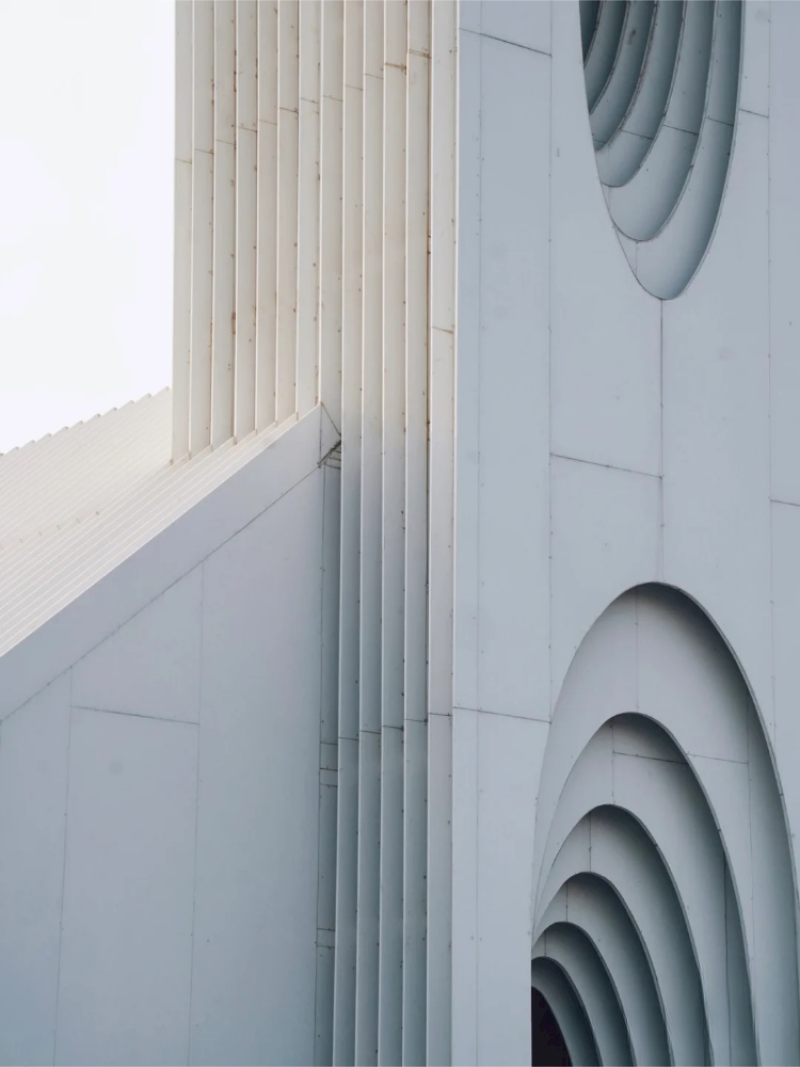

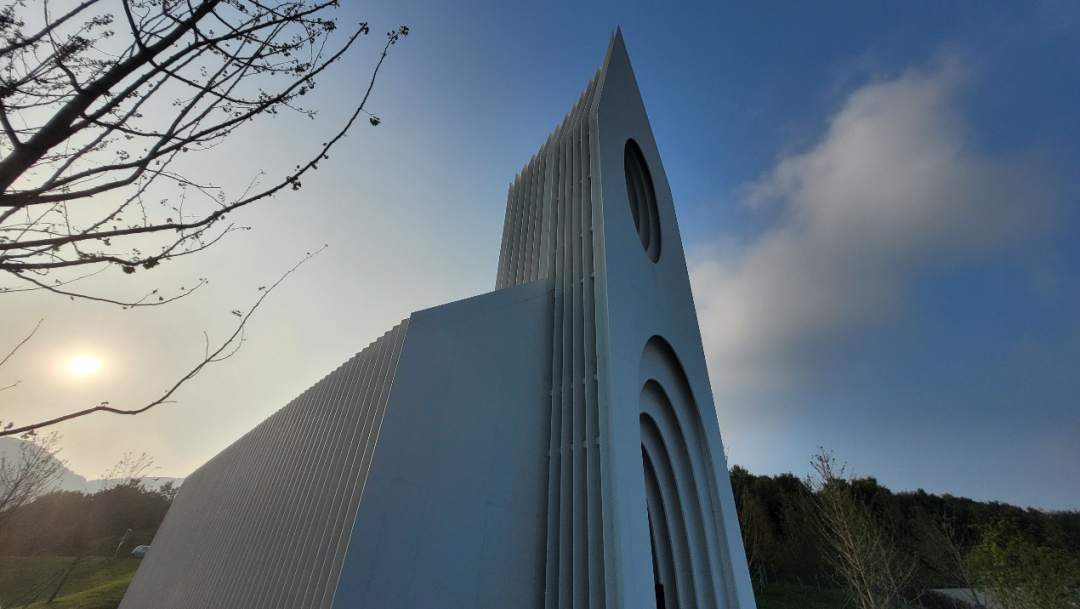

Composite aluminum plate slice and glass curtain wall
The inner and outer slices have two effects : First, the facade of the church will change with the perspective of the observer. From the side view is a closed wall, but from the vertical direction ( e.g. from the inside of the people from the inside to see the outside of the sky ), the entire building facade is open, the line of sight through these gaps. Secondly, the external solemn shape and internal smooth space make the effect constantly change, forming a changing skin.
03
The Moon Empty Wedding Hall of Mashan in Shima has won the 14th annual best religious building of ArchDaily, standing out from more than 4500 participating buildings in the world and becoming one of the 15 annual buildings of ArchDaily in 2023.

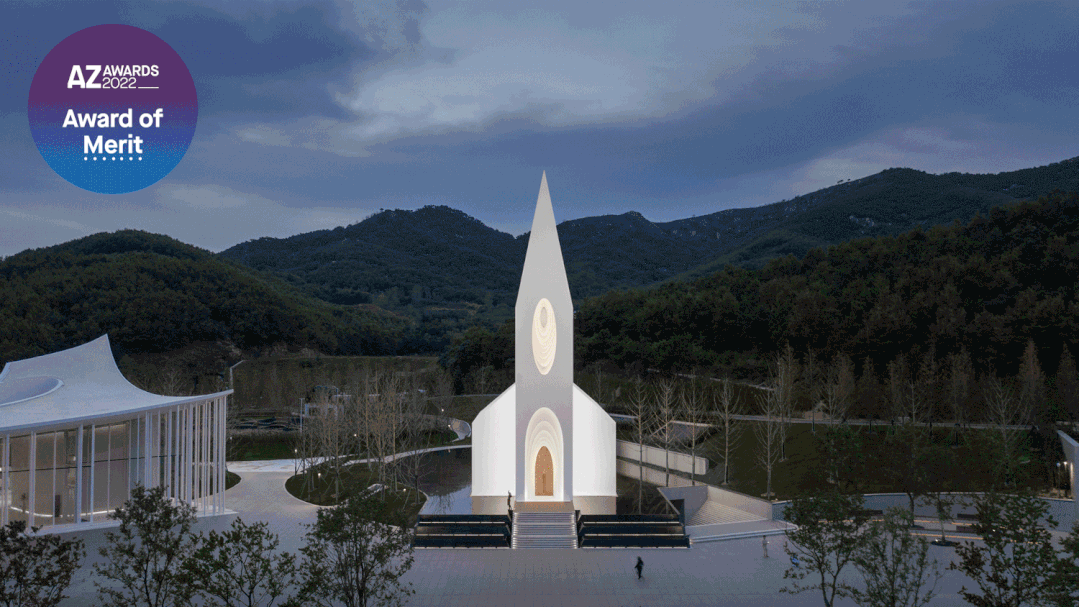

The Moon Air Wedding Auditorium also won the best building facade of Architizer A + Facade in 2022, the best metal material design of Architecture + Metal in 2022, the Canadian AZure Awards, and was nominated for Dezeen Awards, FRAME Awards, WAF World Architecture Festival, and WAN World Architecture News Award.
04

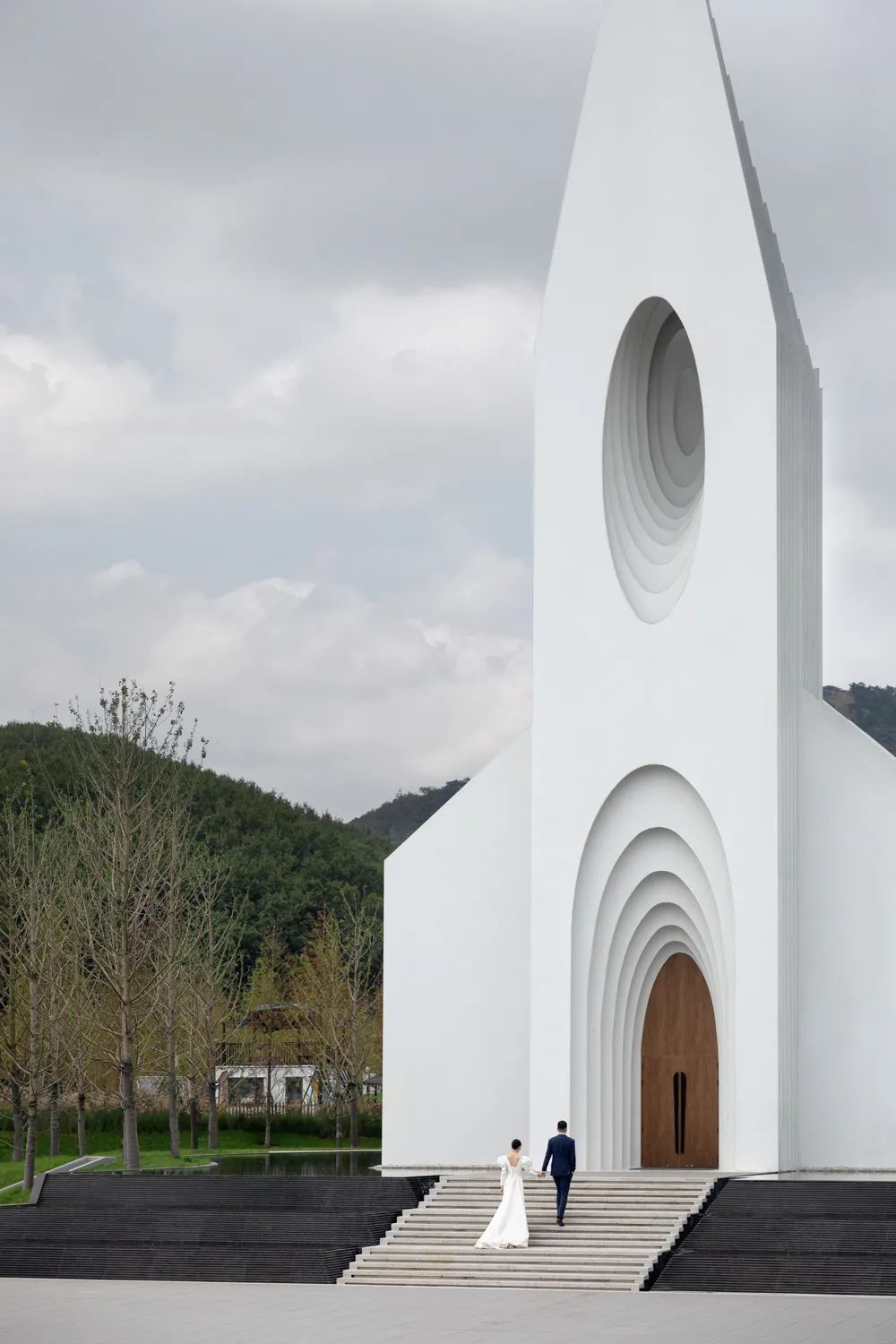

Since the presentation of the moon sky wedding hall, there have been many wedding ceremonies for the newcomers. Here is the wedding photo of the newcomers, which collects the beautiful moments of the newcomers.

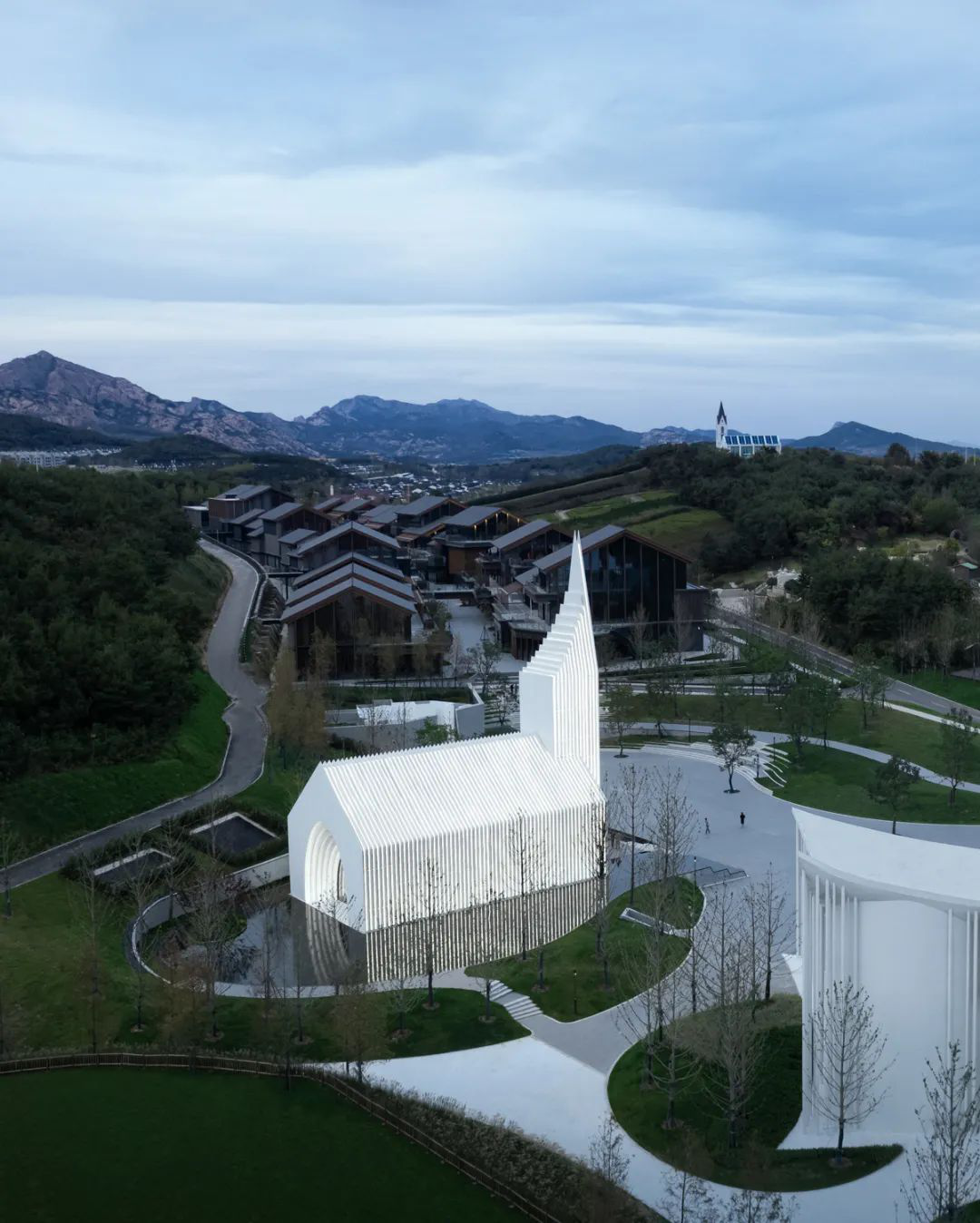

As an architectural space, in the long-term operation and use process, the site operators and site users of Aduo Town, the field with the moon wedding hall as the core, filled with many other contents, derived more use methods and richer scene meaning, giving people here more experience.

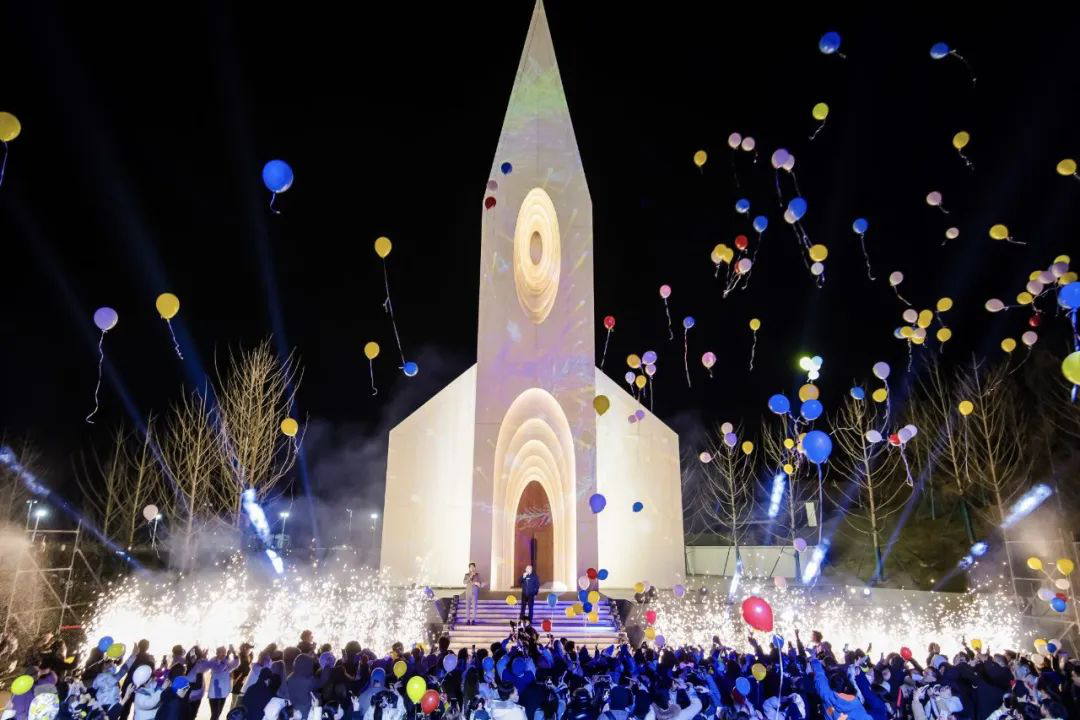

In 2021 and 2022, the Moon Sky Wedding Hall was held in front of the New Year 's Eve for two consecutive years, with more than 10,000 friends from all over the country waiting for the New Year bell to ring.
It is also a secret game base for children, carrying children 's laughter and neighborhood reunion. It is also a youth activity base full of young vitality.
During the four seasons of mountains and lakes, oil painting sketches were at the right time, and the reverie under the moon was beautiful, and daily life could be poetry.
The pictures in the text are from the network
-
